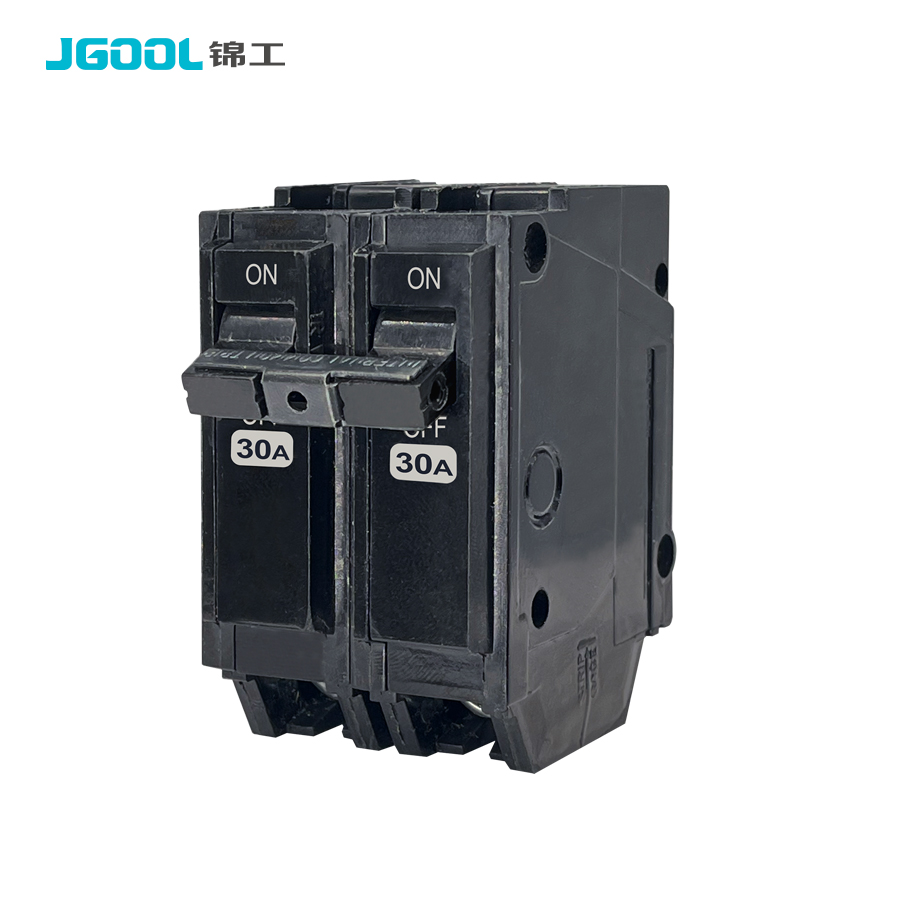

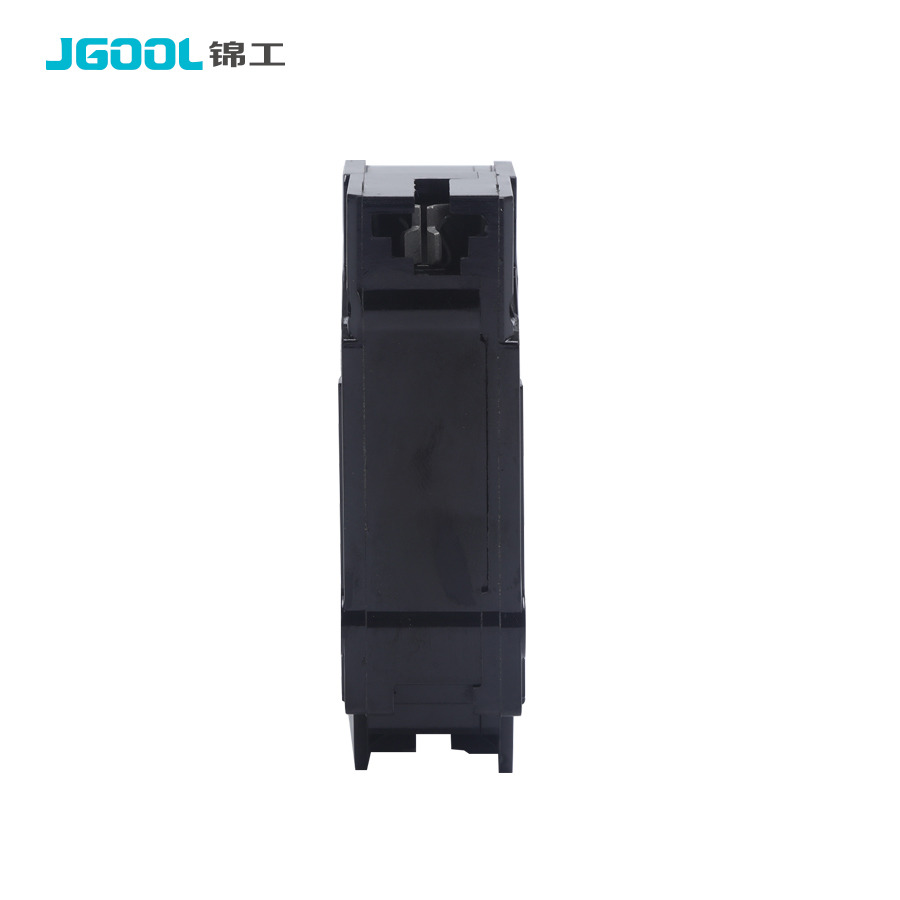

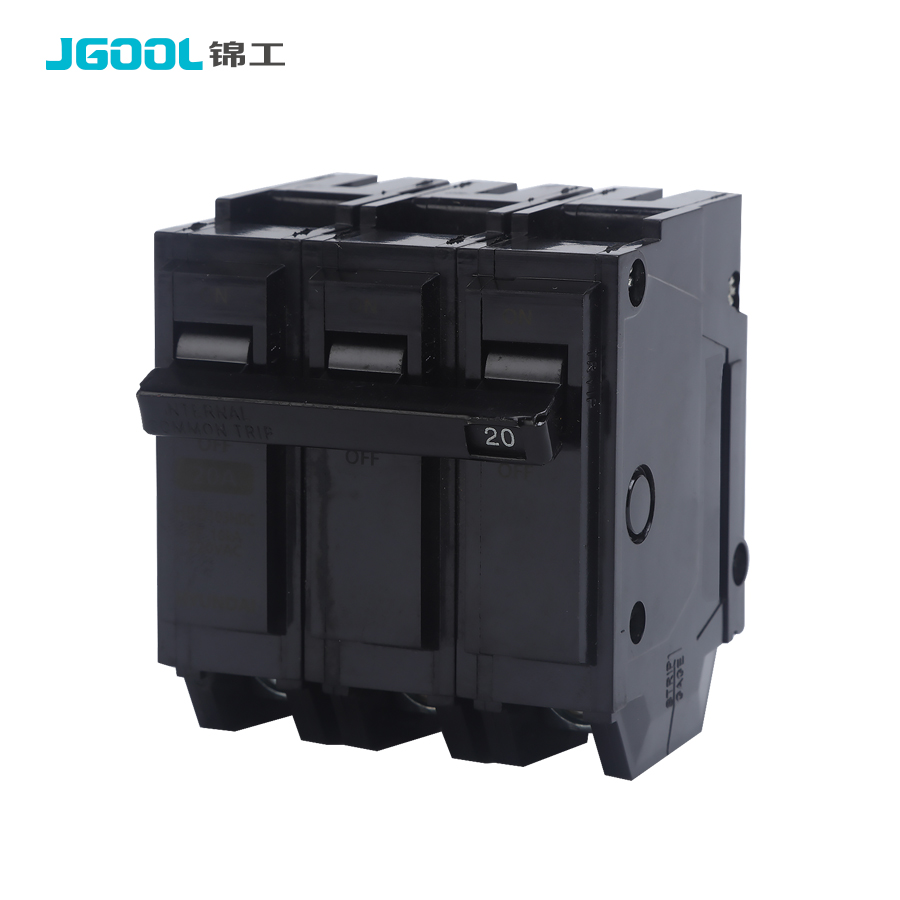

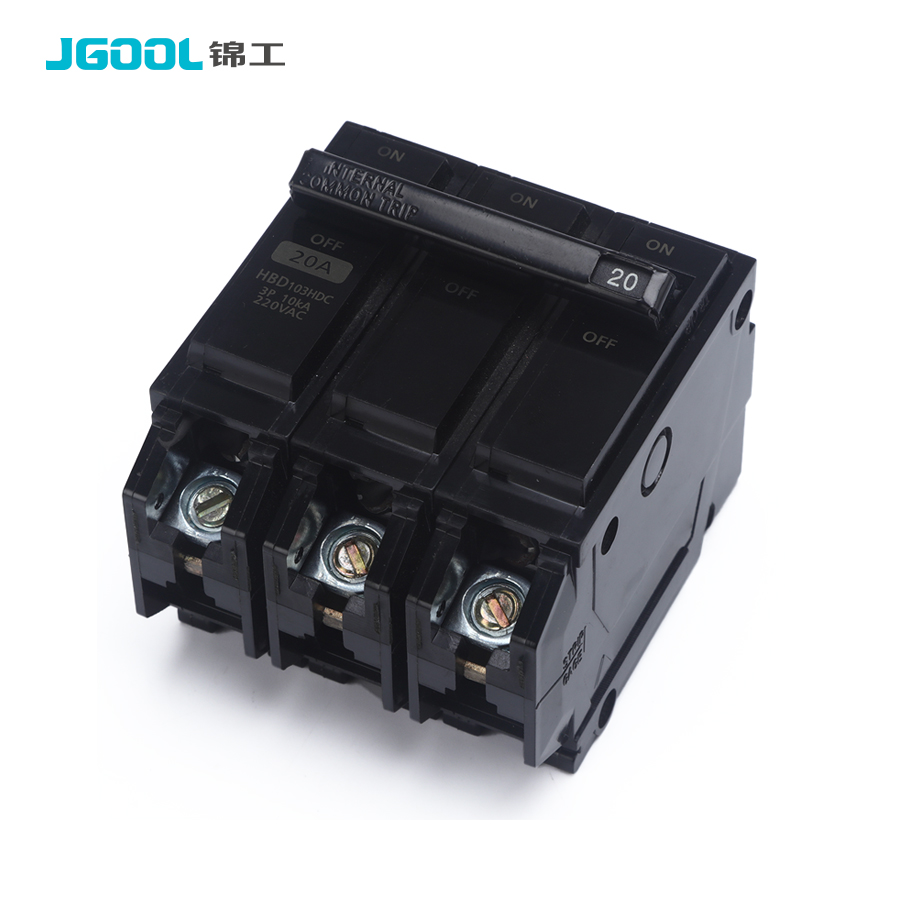

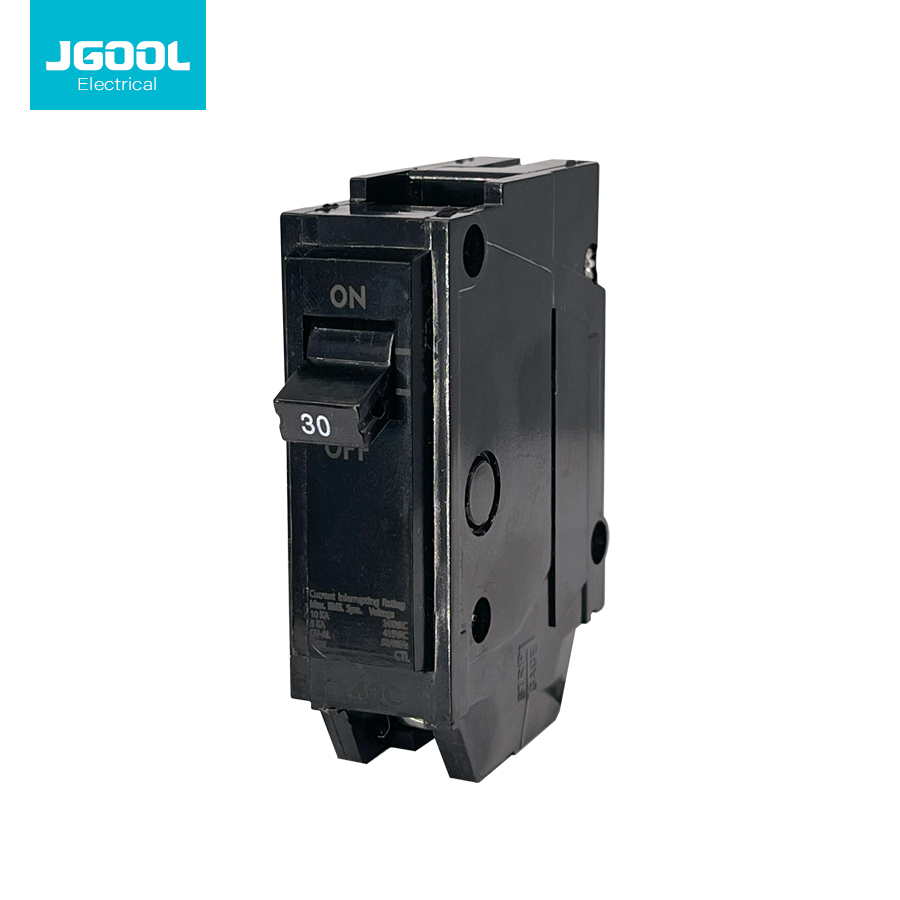

TQL circuit breaker

plug-in type MCB

Feature

With short circuit protection,
Overload protection,
Control isolation;

Quantity :

add to cart Contact Now

Product Introduction

Application

American standard plug-in TQL circuit breaker for South America in AC 120/240V, frequency 50 (60) HZ, rated current below 63A circuit, with short circuit protection, overload protection, control isolation; It is suitable for low-voltage terminal power distribution in industry, civil building, energy and infrastructure.

Main technical parameters

Type	TQL
Number of Poles	1P,2P,3P
Rated Current (A)	6, 10, 15, 20, 30, 40, 50, 60,70,100A
Grade of shell frame Rated current (A)	63
Rated Voltage (V)	AC120/240,
Rated frequency	50/60Hz
Breaking Capacity (A)	4000,6000,
Mechanical Life (Times)	16000
Interruption time (S)	≤0.1
Tripping device type	B,C,D
