Application

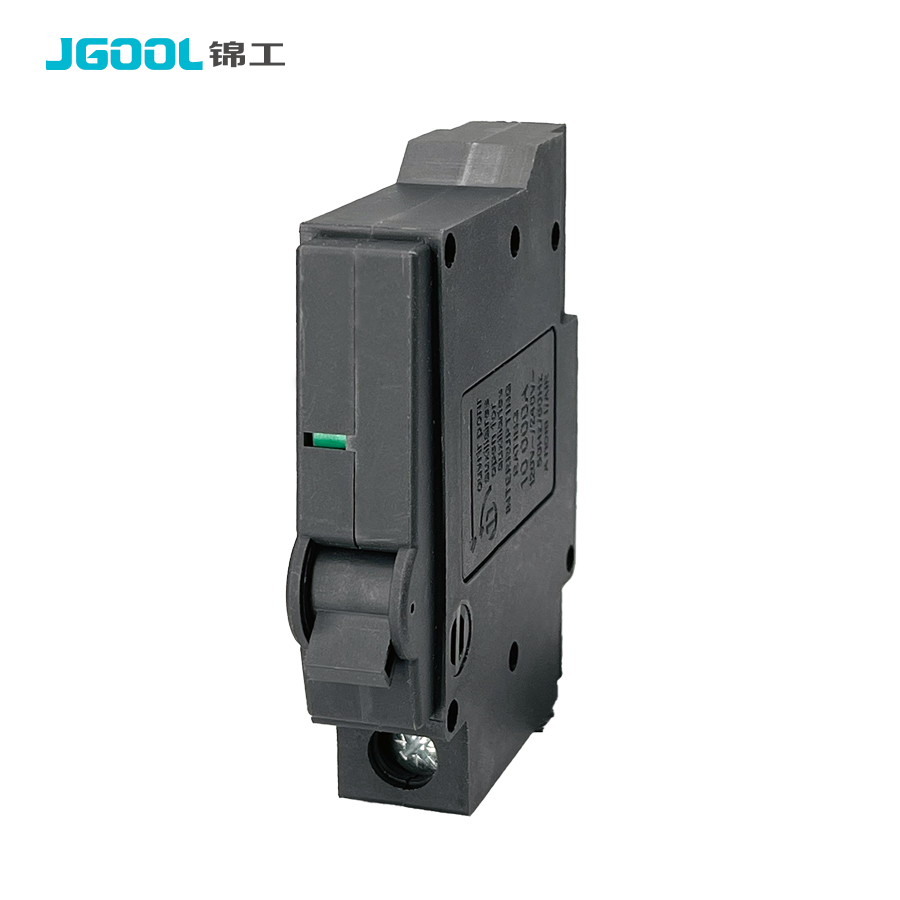

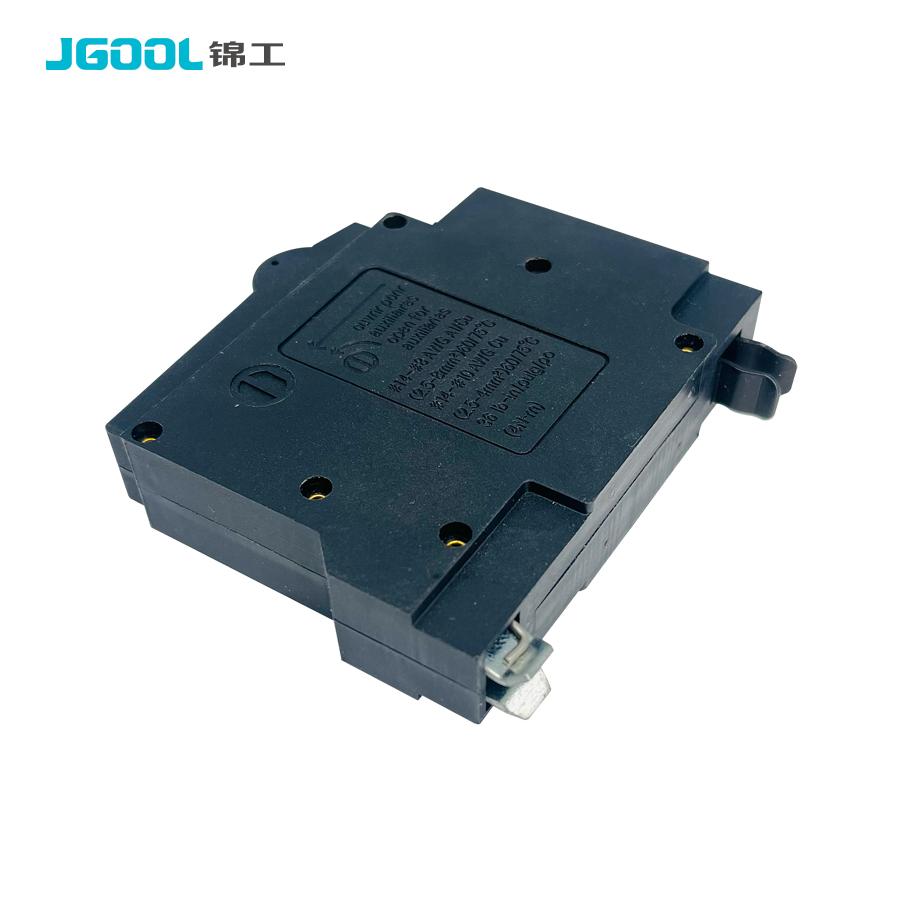

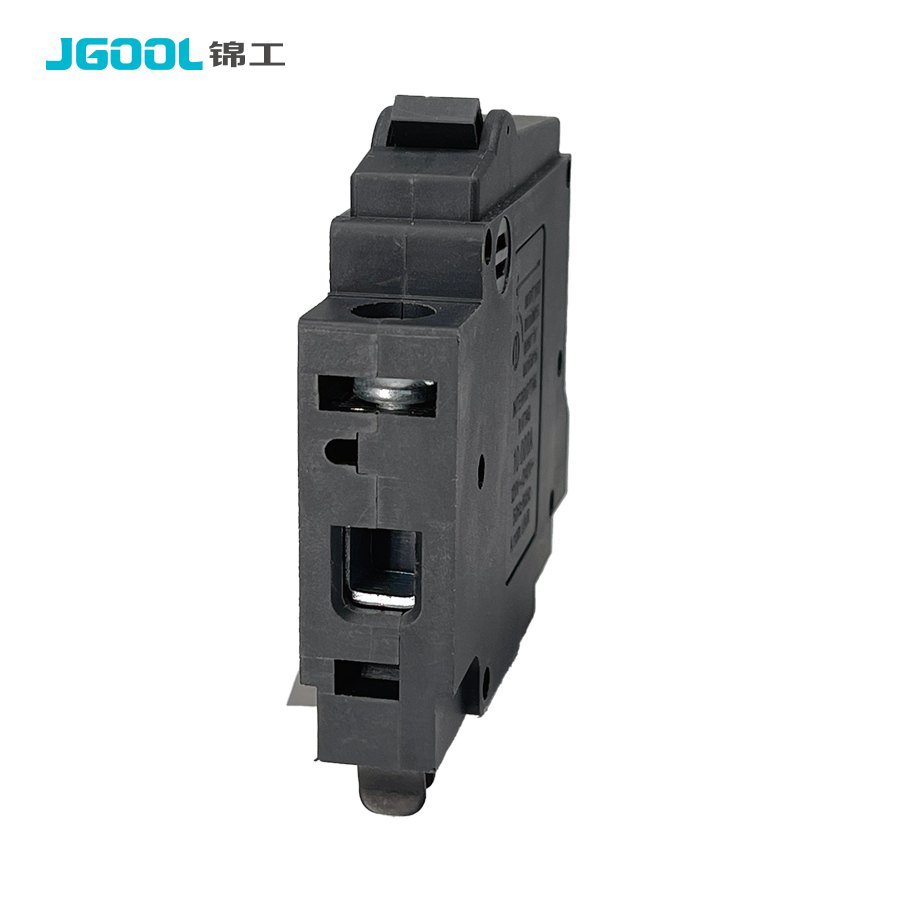

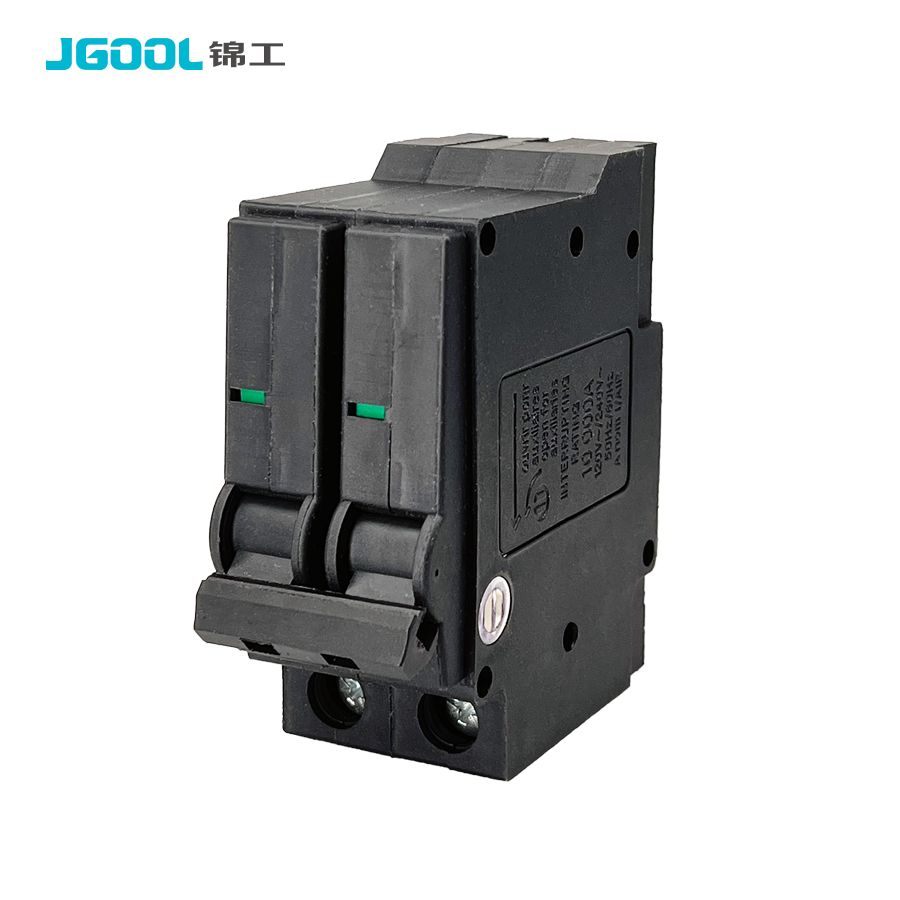

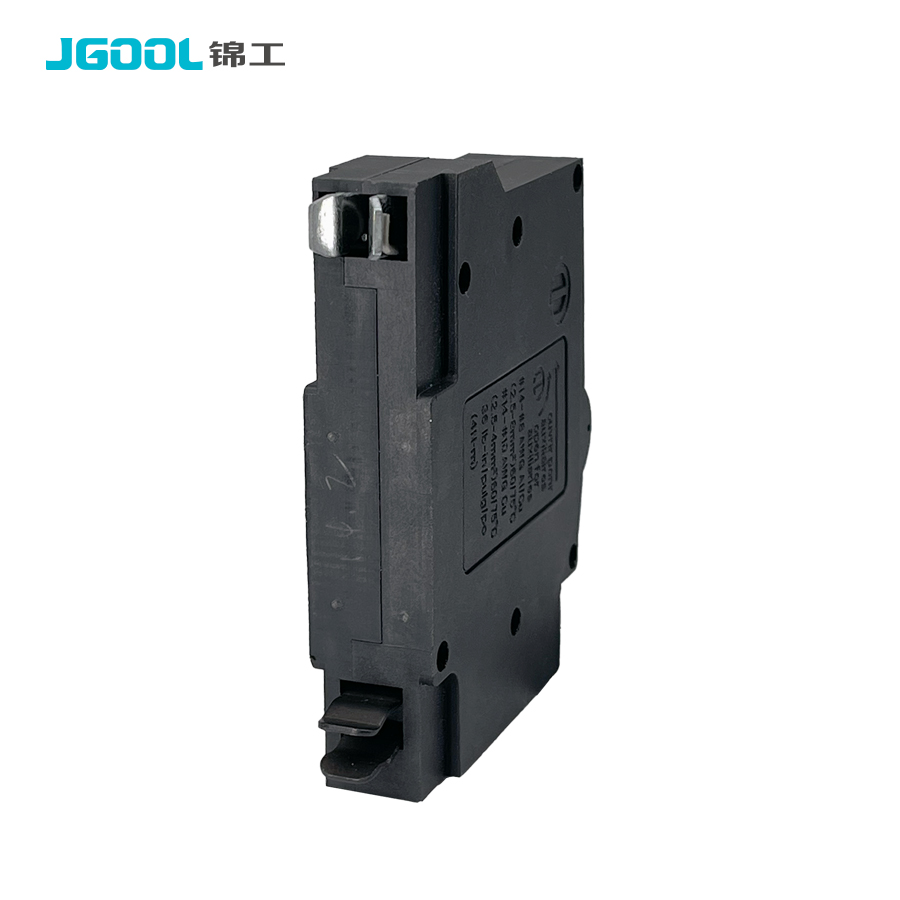

KITC-63 Series High Breaking Capacity Miniature circuit breaker (MCB) protects circuit overload and current short circuit. Suitable for rated voltage 230/400V AC, frequency 50/60Hz, rated current 60Amp below the circuit. The product provides overload and short circuit protection for circuits and devices in home and commercial installations. MCB can also be used as an infrequent conversion of a circuit. Meets NOM standards.

Red And Green Indication Light,Clearly Working Status DisplayConvenient To Check,Safe And Controllable

Magnetic operation has three curvilinear characteristics:

B-curve (3-5In) is used for protection and control of long cables in TN and IT systems.

C curve (5-10In) to protect and control circuit overload and short circuit; Resistive and inductive load protection against low inrush currents.

D curve (10-14In) to protect and control circuit overload and short circuit; Provides circuit protection for high inrush current loads when the circuit is closed (low voltage/low voltage transformer, breakdown lamp).

Main technical parameters
