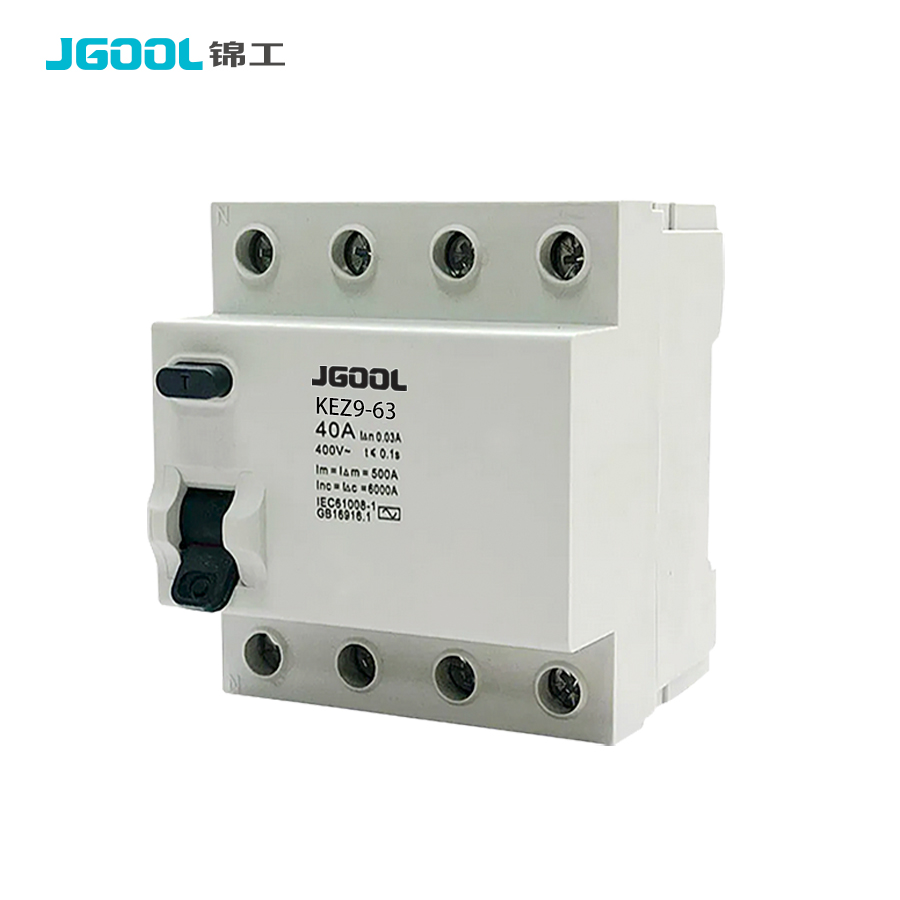

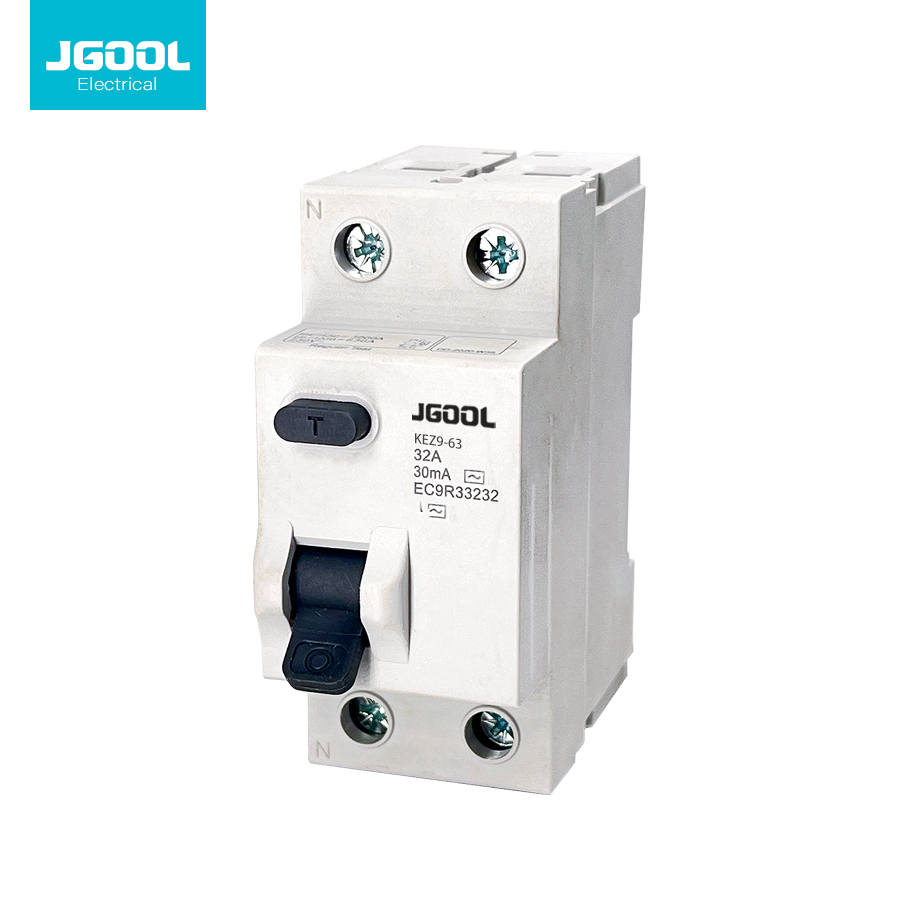

KEZ9-63 RCCB

KEZ9-63 RCCB

Electro-magnetic type,
electronic type

Feature

Cut the fault loop
Avoid electric leakage accidents
Quantity :
add to cart Contact Now

Product Introduction

Application


KEZ9-63 residual current circuit breaker can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.  Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.  It can be used in circuits up to 2 poles 230V, 4poles 400V, 50 or 60Hz.  It is in conformity with the standards of IEC61008.1


Main technical parameters


Type

KEZ9-63




Standard

Unit

IEC61008.1

Electrical

features

Mode


Electro-magnetic type, electronic type

Type(wave form of the earth leakage sensed)


A,AC

Rated current In

A

16,25,32,40,63

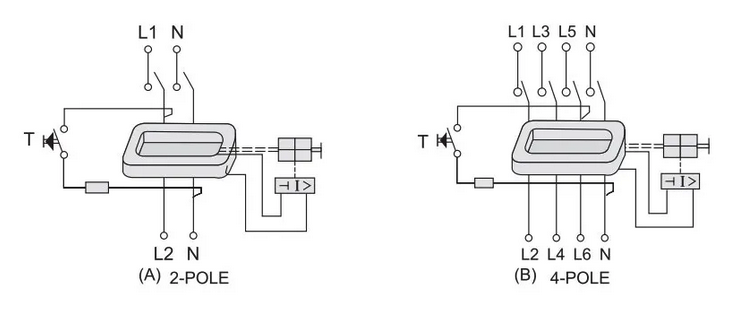

Poles

P

2,4

Rated voltage Ue

V

AC 230/400

Rated sensitivity I△n

A

0.01,0.03,0.1,0.3,0.5

Insulation voltage Ui

V

500

Rated residual making and breaking capacity I△m

A

630

Short-circuit current I△c

A

6000

SCPD fuse

A

6000

Rated frequency

Hz

50/60

Pollution degree


2

Mechanical features

Electrical life

t

4000

Mechanical life

t

8000

Protection degree


IP20

Ambient temperature

(with daily average ≤35ºC)

ºC

-25~+40

Storage temperature

ºC

-25~+70

Installation

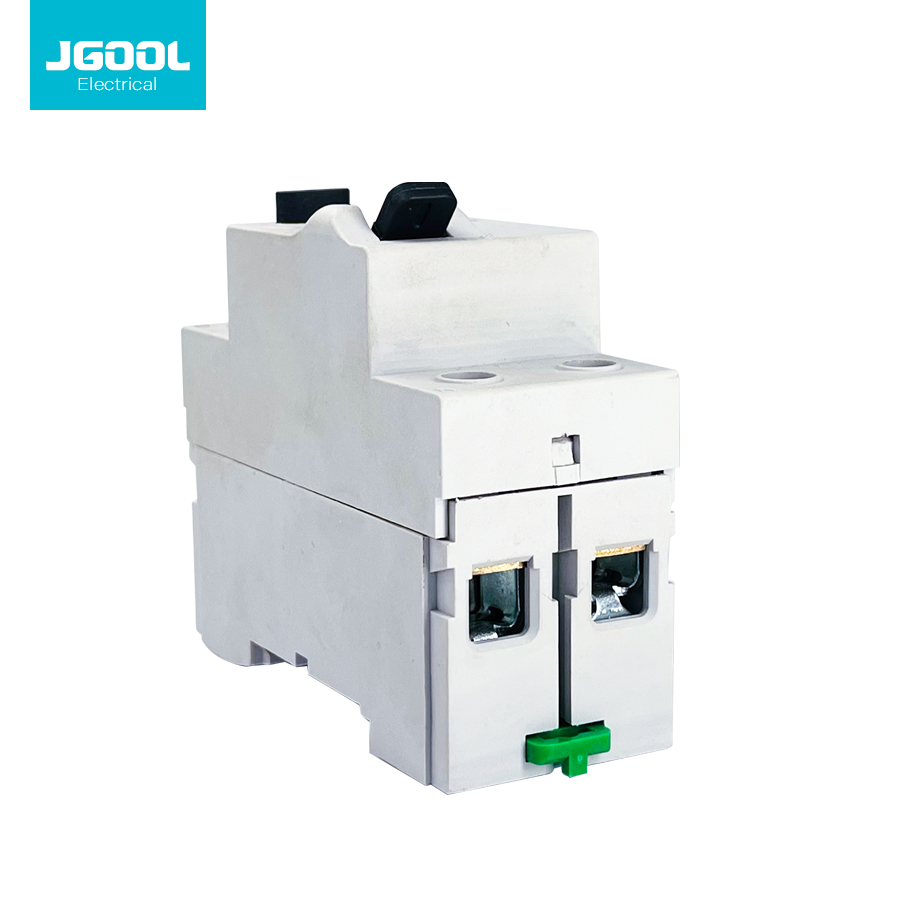

Terminal connection type


Cable/U-type busbar/pin-type busbar

Terminal size top/bottom for cable



mm2

25

AWG

18-3

Terminal size top/bottom for busbar

mm2

25

AWG

18-3

Tightening torque

N*m

2.5


In-lbs

22

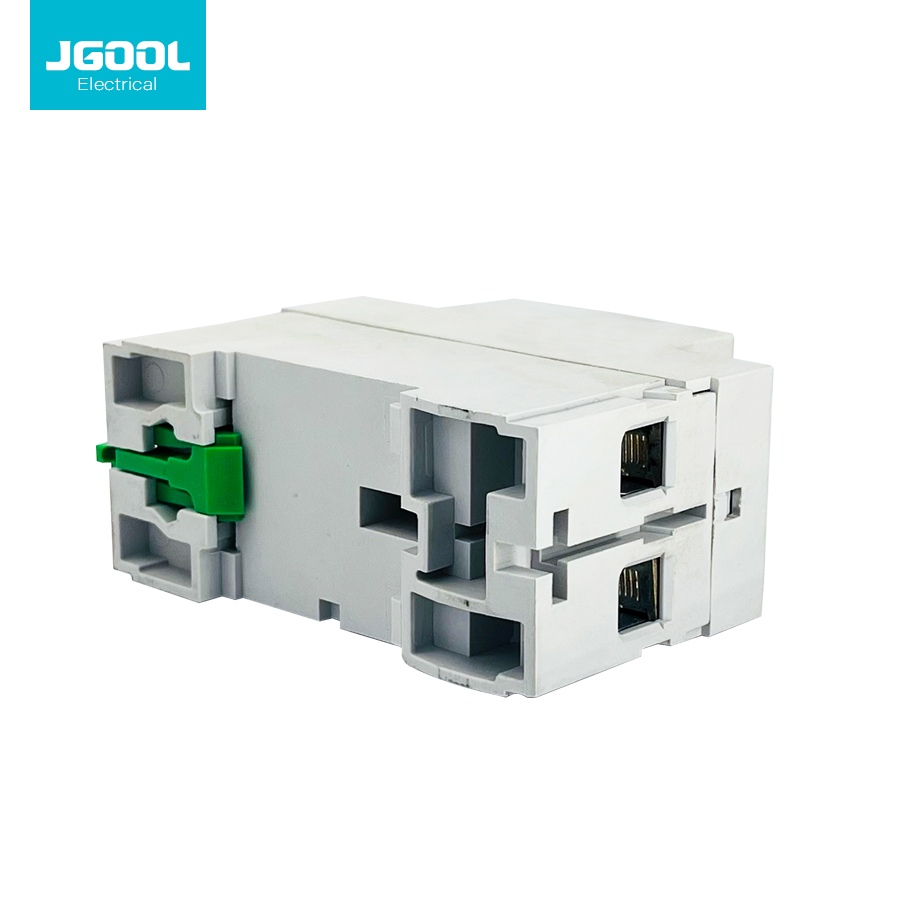

Mounting


On DIN rail EN 60715(35mm)by means of fast clip device


Connection


From top and bottom
