Main specification & Technical parameters

Main specification

 1 According to rated current (In):1A . 2A . 3A .4A .6A .10A .16A. 20A .25A. 32A .40A . 50A .63A. 2 According to instantaneous tripping characteristics: Type B (3-5)In. Type C(5-10)In Type D(10-14)In 3 Number of poles: 1pole, 2pole,3pole,4pole

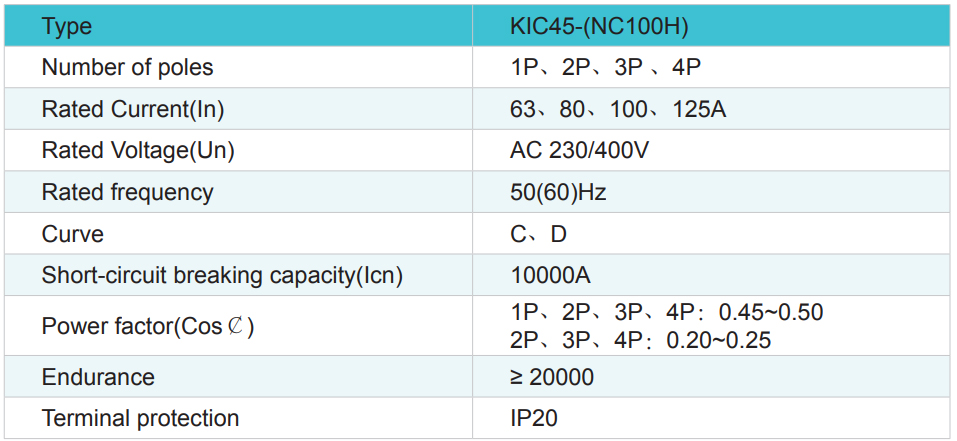

Technical parameters

 1Ratted short circuit breaking capacity

Condition and Installation

·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.

·Altitude above sea level less than 2000 m.

·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.

·Installation class II or III.·Pollution class 2.

·Installation method DIN Rail mounting type.

·The external magnetism shall not be more than 5 times of terrestrial one.

·Product shall be installed vertically at the place where there shall be no severe impact andvibration. The product is switched on when the handle is at upper position.
