Application

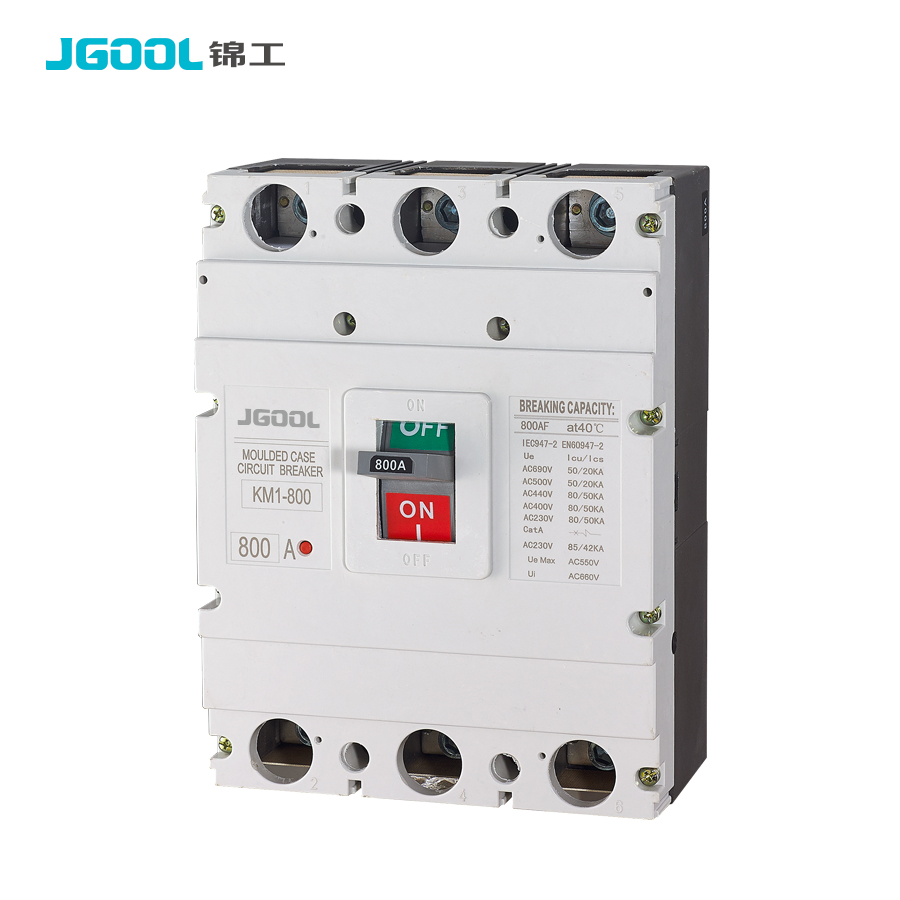

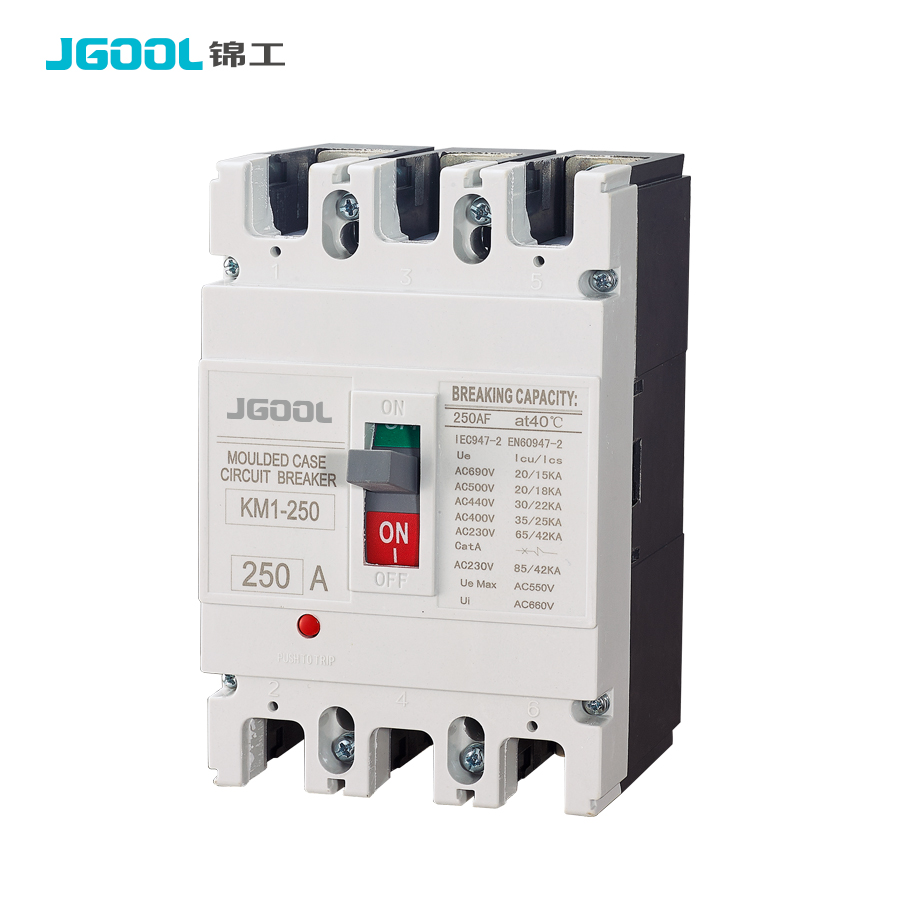

AM1 series plastic shell circuit breaker (hereinafter referred to as circuit breaker) is one of the new circuit breakers designed and developed by international advanced technology.

The circuit breaker has a rated insulation voltage of 690V (model 63 is 500V), which is suitable for distribution network circuits with AC 50Hz or 60Hz, rated working voltage of 690V, and rated working current of 6A to 1250A. It is used to distribute electric energy and protect lines and power equipment from overload, short circuit, undervoltage and other faults. At the same time, it can also be used as motor infrequent start and overload, short circuit, undervoltage protection.

The circuit breaker has the characteristics of small size, breaking height, short fly-arc (or no fly-arc), etc. It is an ideal product for users.

The circuit breaker is installed vertically (vertical installation) and can also be installed horizontally (horizontal installation).

This product complies with GB/T14048.2 standard.

Main technical parameters
