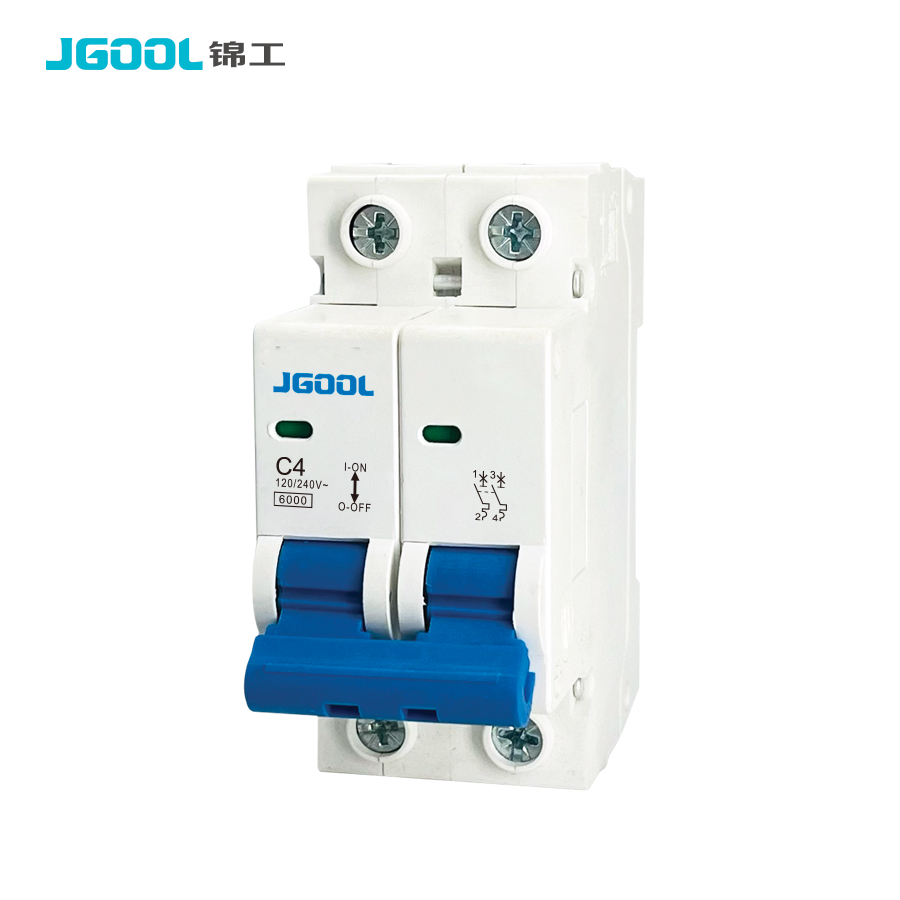

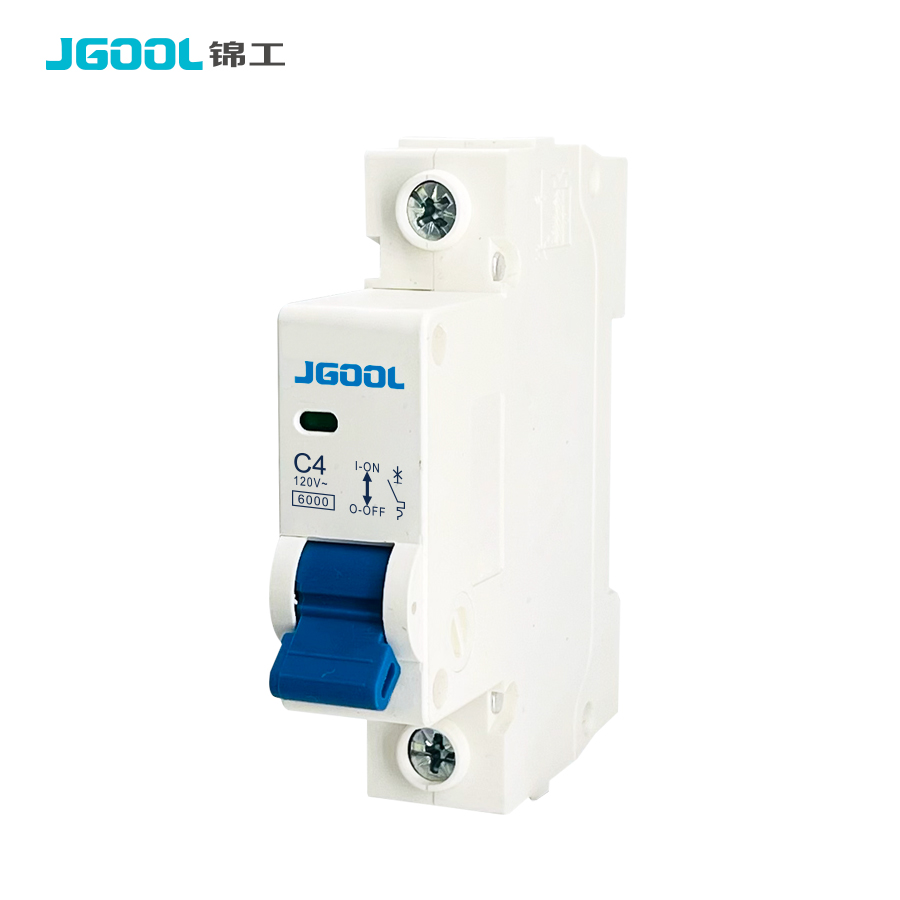

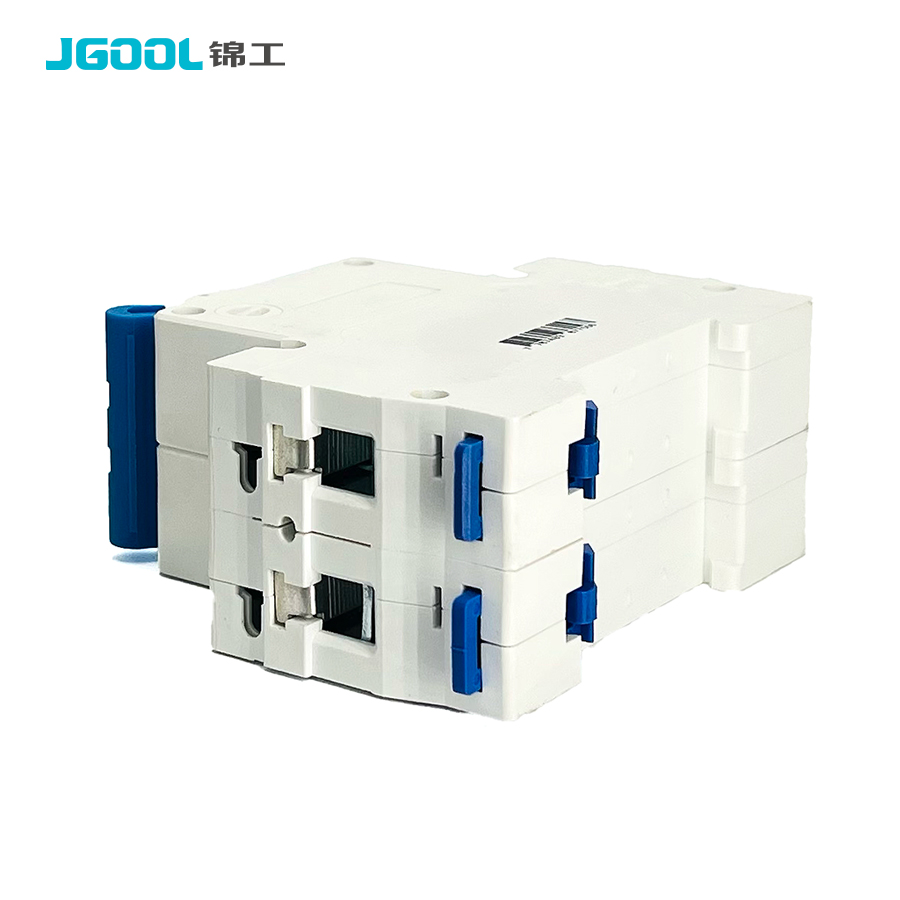

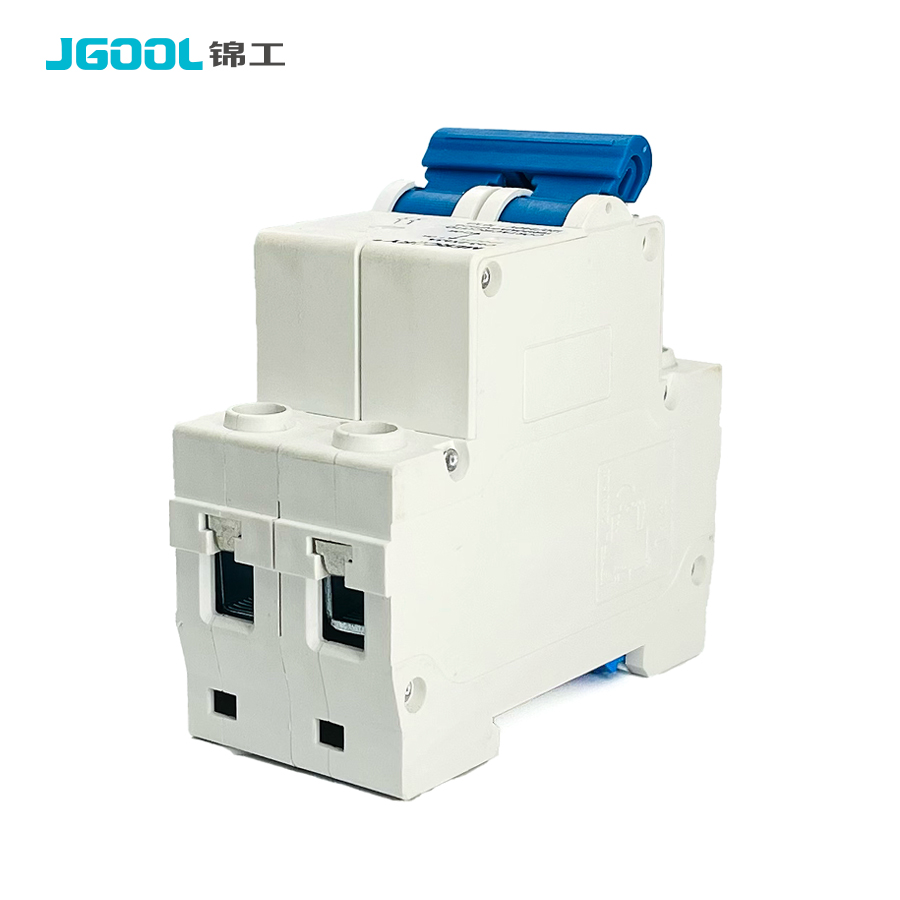

KIC45-63(D) mini circuit breakers

DIN Rail type mcb

Feature

1, with short circuit protection
2. Isolation and control
3. Overload protection
4. Cooperate with thermal relay motor

Quantity :

add to cart Contact Now

Product Introduction

Application

KIC45(D) Protection and control of circuit against overload and short circuit,In building installation-such as houses,offices,commercial complex,motor system(D curve) and industrial installation-for switching ,control,protection and regulation of electrical circuits. Also in switchgear panels,railway and marine application.

Standard↓

IEC60898

Main technical parameters

Type	KIC45-63(D)
Number of poles	1P、2P、3P 、4P
Rated Current(In)	1、2、3、4、6、10、16、20、25、32、40、50、63A
Rated Voltage(Un)	AC 230(240)/400(415)V
Rated frequency	50(60)Hz
Curve	B、C、D
Short-circuit breaking capacity(Icn)	4500A
Magnetic releases operate	B curve: between 3 and 5 In C curve: between 5 and 10 In D curve: between 10 and 14 In
Endurance	≥ 4000
Terminal protection	IP20
