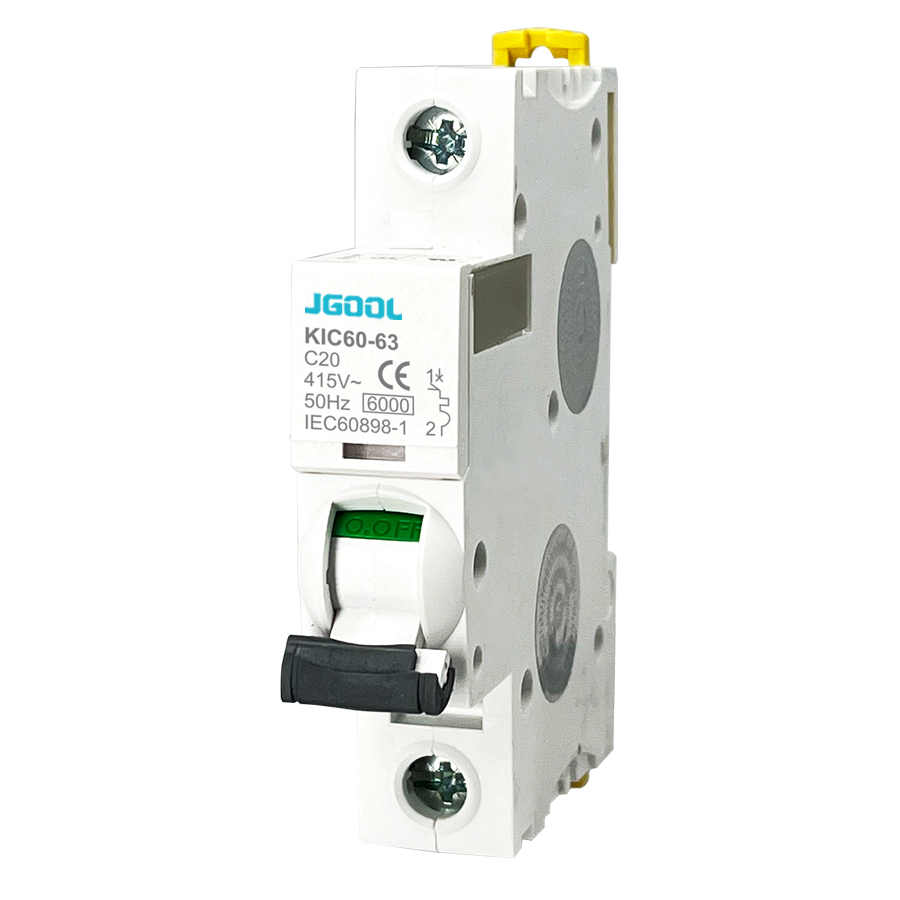

KIC60-63 Top Sales MCB

Rail mounted, universal circuit breaker

Feature

1, with short circuit protection
2. Isolation and control
3. Overload protection
4. Cooperate with thermal relay motor

Quantity :

add to cart Contact Now

Product Introduction

Application

KIC60-63 has the function of short circuit protection, isolation, control, protection and regulation; Use with thermal relay or motor starter to achieve overload protection; IT is suitable for low-voltage terminal distribution in the fields of motor protection for medical IT distribution systems and building fire protection systems, such as residential, office, commercial complexes, motor systems and industrial installations, as well as for switch panel, railway and Marine applications.

Standard ↓

IEC60898

Main technical parameters

Type	KIC60-63

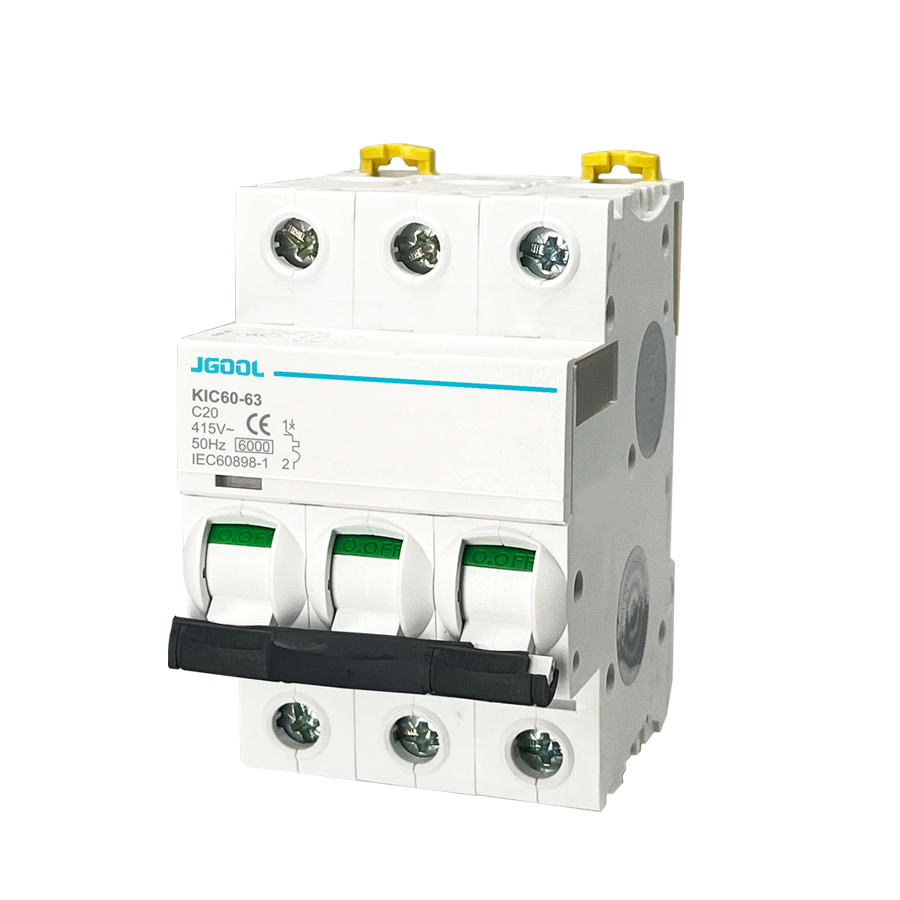

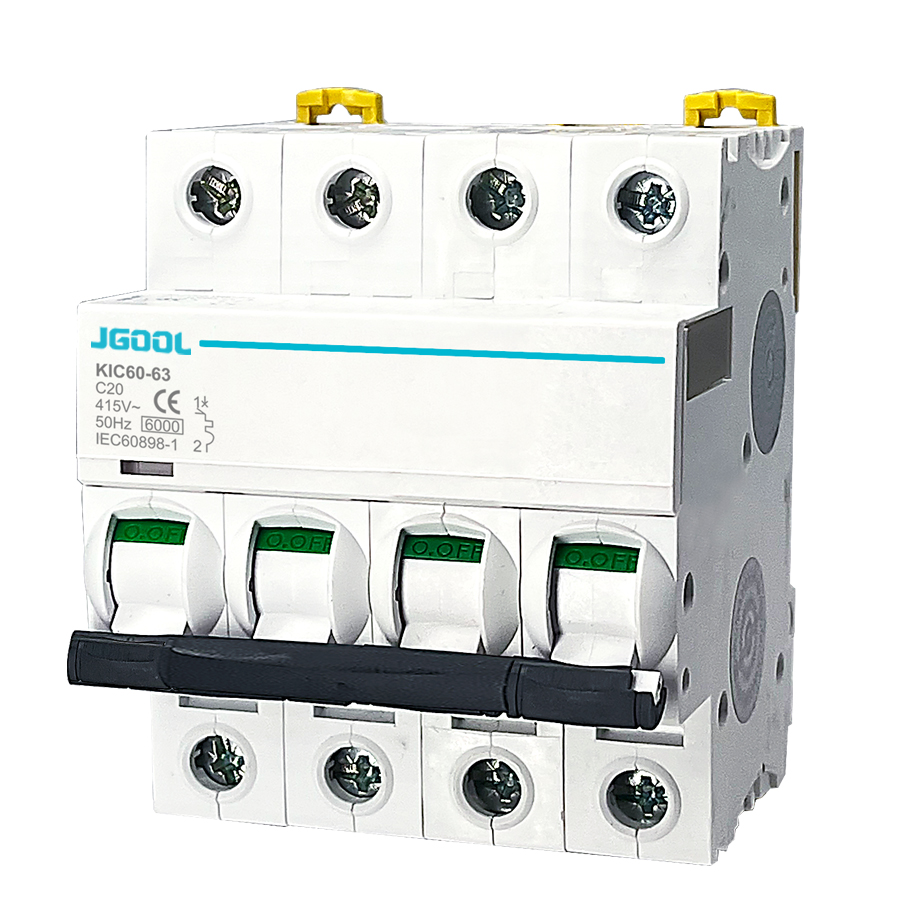

Number of poles	1P、 2P、3P 、4P
Rated Current(In)	2、3、4、6、10、16、20、25、32、40、50、63A
Rated Voltage(Un)	AC 230(240)/400(415)V
Rated frequency	50(60)Hz
Curve	B、C、D
Short-circuit breaking capacity(Icn)	6000A
Magnetic releases operate	B curve: between 3 and 5 In C curve: between 5 and 10 In D curve: between 10 and 14 In
Endurance	≥ 4000
Terminal protection	IP20

Normal operation and mounting requirement

Circumstance temperature -5°C~ +40°C, average temperature not exceeding 35°C.

·Altitude above sea level less than 2000 m.

·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.

·Installation class II or III.

·Pollution class 2.

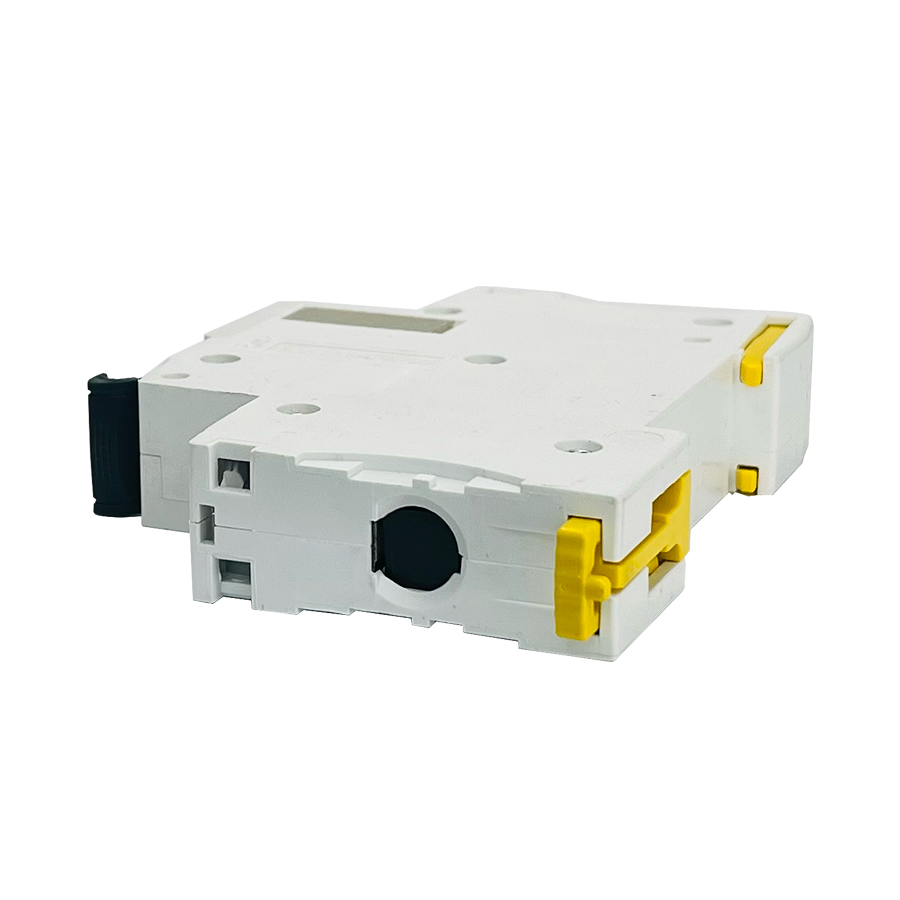

·Installation method DIN Rail mounting type.

·The external magnetism shall not be more than 5 times of terrestrial one.

·Product shall be installed vertically at the place where there shall be no severe impactand vibration. The product is switched on when the handle is at upper position.

Characteristic Curve
